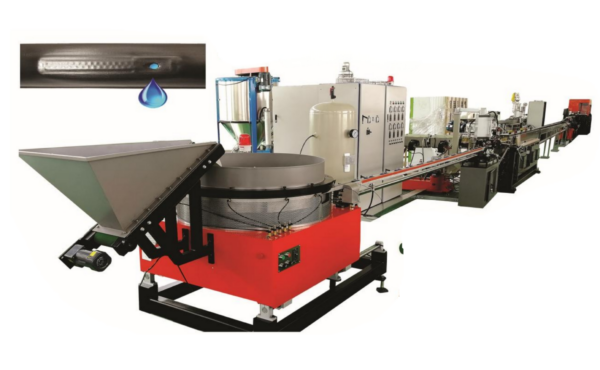

flat dripper irrigation tape produce machine

Technical features of the line:

1. PLC touch screen full automatic control.
2. Dripper loading , sieving , conveying ,are automatic completely with accurate space and firmly bonded.
3. Special designed screw , can use 100% recycle raw material .
4. Plughole under the real-time monitoring of hole punching device , hole-missing alarm system adopted.
5. Great advantages for small spacing double-hole dripper.

General Parameter of the Machine

Pipe diameer	Pipe thickness	Produce speed	Dripper distance
Φ12-16-20-25-32mm	0.12-1.2mm	300-360m/min	100-1000mm
Dripper distance		Normal speed
300mm		360m/min
200mm		360m/min
100mm		300m/min
100mm(double hole dripper)		300m/min

Our machine advantages :

1.Dripper selection system

Optional specifications: Single disk

Drip feed mode: automatic

Effective diameter: 1280mm

Material: high quality aluminum alloy, unique processing technology,

greatly reduce the degree of wear, prolong the maintenance interval

Screening method: pneumatic centrifugal

Operation mode: AC frequency conversion control

Dropper recognition speed: > 2000 pieces/min

Power: 1900 w

Stable conveying, compatible with thin and thick drippers, reverse

dropper automatic removal device obtained the national patent.

With independent intellectual property rights, it can be used at ease.

2.High speed dripper conveyor

Material: aluminum alloy drawing molding, ensure the flow of conveying

drip head, easy to replace vulnerable parts

Servo motor and drive brand: Panasonic

Ac servo motor drive, so that the dripper conveying distance is more stable

3. Extruder

The control system adopts PLC man-machine interface centralized control,

the program runs stably, the operation is simple, developed by our company

independently, obtained the national patent, can remote monitoring and

operation, visual interface makes the operation and after-sales more

simple and intuitive.

Our company through long-term research and development and practice,

reduce the human intervention factors of the production line, make its

operation, maintenance more convenient; Online detection function is

powerful, new users can get started through simple training, large-scale

production of large users can effectively reduce management costs, the

rate of finished products in the industry leading position.

National patent, with independent intellectual property rights, can be

trusted to use.

4. Hole punching machine

Non-contact Detection Drilling Device, HD drilling Visual Detection

Device and Single Crawler Traction Device

Non-contact detection punch device

Servo motor and drive brand: Panasonic

Servo motor power: 750W

Punching method: four knives

Maximum drilling speed: ＞ 3200 pieces/min

Drilling precision and speed are in the industry leading level

HD drilling Visual Detection Device

It has the functions of automatic photo taking, fault image retention,

product unqualified alarm and so on.

Real-time detection of water outlet and real-time display of punching

effect on the screen, recording bad records.

Report to the police immediately if it is found to be deflected, missed

or not chipped.





5. winding system

we have normal winding system, also we have full automatic winding system

6. we provide auxiliary machinery  like:  re-winder,  dripper molding machine, dripper moulds.

we are professional to produce this machine about 15 years,  we have full experience and latest technology.

we provide you high quality machine with low price.  we provide turn key project for you.
