Sunshade yarn , vegetable bags yarn making machine
Sunshade yarn , vegetable bags yarn making machine
this machine sue to produce flat yarn , which can use to produce sunshade , vegetable bags, cement bags, fibraliant ropes .
This machine uses the PP or HDPE material to produce tapes for PP woven bags weaving through production procedures of material heating & extruding, splitting the film into tapes, tapes stretching & forming and tapes winding on the bobbins by winding machine, and then put the bobbins with tapes on circular loom for weaving. This machine can use all kinds of materials, such as 100% recycled materials, power materials or pellet materials. Its screw and cylinder and other important parts adopt special alloy steel.
| 1.Extruder Part: | |||||
| ITEM | Technical Parameter | Main parts introduce | |||
| Dia of Screw | 70mm | Raw material:PP/PE
Film size: 2.5mm 1.Frequency conversion control speed. 2. Hardtooth surface gear motor:guomaoguotai. 3. Screw and barrel surface gear motor:Jianghainkewei. 4. With automatic feeding machine. 5.Heating method of die head:electric heating 6. Single long-term filter: Φ100*420mm (L), with pressure table |
|||
| Ratio of L/D | 30:1 | ||||
| Driving Power | 18.5kw,with frequency | ||||
| Capacity of Extruder | 25kg/h-50kg/h | ||||
| Dia of Die | 600mm | ||||
| Heating power | 24kw | ||||
| Automatic feeder | 1set | ||||
| 2. Cooling Bath | |||||
| ITEM | Technical Parameter | 1.Side –push model : with 404 stainless steel
2.plat under support roll 3.Material of box: stainless steel 4.Material of distributing roller: stainless steel 5. cooling bath can move laterally |
|||
| Method of Cooling | water | ||||
| Dimension of Cooling Bath | 1.0*0.8*0.4m | ||||
| Film guider roller | 2 pcs | ||||
| 3. Film Lifting and Slitting Part | |||||
| ITEM | Technical Parameter | 1.Frequency conversion control speed
2.Rubber press roller with pneumatic device 3.Film blower: 370w/1 set 4.Reducer: 120-1:40 turbine reducer |
|||
| Stretch roller size | Φ155*700mm/2pcs | ||||
| Rubber press roller | Φ150*680mm/2pcs | ||||
| Driving power | 2.2kw | ||||
| Max stretch speed | 25m/min | ||||
| 4. Heating Plate No.1 (stretching): | |||||
| ITEM | Technical Parameter | 1.Material is stainless steel and with heat preservation, surface chromium plated
2. Heating method: electrical heating 3. Electrical control: Temperature Control System controls the temperature through solid-state relay; digital temperature controller; five area of quartz tube heating |
|||
| Dimension | 4000mm(L)*(600+150)mm(W)*10mm | ||||
| Heating Mode | Electric Heating | ||||
| Power: | 36kw | ||||
| 5.Stretching Roller No. 1 | |||||
| ITEM | Technical Parameter | 1.Frequency conversion control speed
2. Steel structure of box, chain transmission, running balance. 3.material of distributing roller: stainless steel 4.reducer: ZLY125-1：8 |
|||
| Roller Size | 295mm(D)*700mm(L) | ||||
| Quantity of Stretching Roller | 5pcs | ||||
| Speed | 160m/min | ||||
| Driving power | 5.5kw | ||||
| Control Mode | With chain box, frequency inverter | ||||
| 6. Heating Plate No.2 (sizing): | |||||
| ITEM | Technical Parameter | 1.Material is stainless steel and with heat preservation, surface chromium plated
2.heating method: electrical heating 3. Electrical control: Temperature Control System controls the temperature through solid-state relay; digital temperature controller; five area of quartz tube heating |
|||
| Dimension | 2500mm(L)*(600+150)mm(W)*10mm | ||||
| Heating Mode | Electric Heating | ||||
| Power: | 16kw | ||||
| 7.Stretching Roller No. 2 | |||||
| ITEM | Technical Parameter | 1.Frequency conversion control speed
2.steel structure of box, chain transmission, running balance 3.material of distributing roller: stainless steel 4. Reducer: ZLY125-1：8 |
|||
| Roller Size | 295mm(D)*700mm(L)/2 pcs
295mm(D)*750mm(L)/2 pcs |
||||
| Driving power | 4kw | ||||
| Control Mode | With chain box, frequency inverter | ||||
| 8. Waste yarn winder | |||||
| ITEM | Technical Parameter | 1. Motor: 100kg torque motor, adjustable torque
|
|||
| Winder size | Φ120×750mm | ||||
| Torque Motor | 100kg | ||||

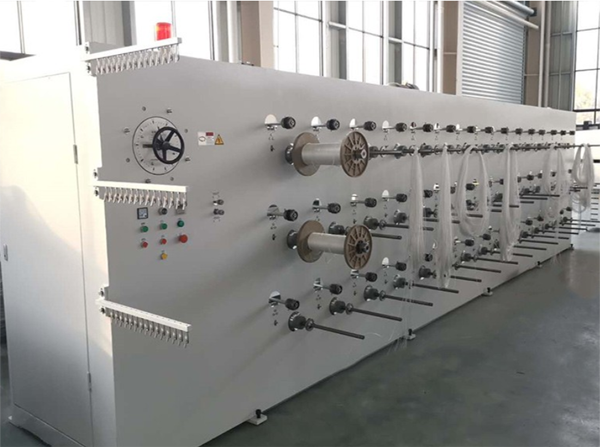

| Winder part | |||||
| ITEM | Technical Parameter | ||||
| Heads of winder | 104 Winders | ||||
| Winder tube | Φ38mm×218mm(we can supply the metal tube) | ||||
| Winding speed | 0-280m/min | ||||
| Motor | 180W | ||||
