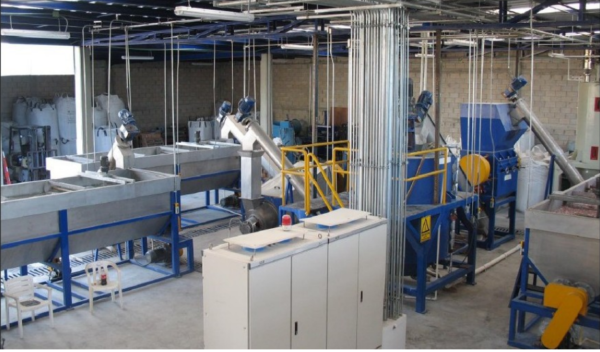

waste film and PET bottle washing recycle production line

Soft Plastic (Film/woven bag/fiber/rope), PET bottle flakes Washing Line, which is aiming at agricultural film, industrial packaging film, bag, blowing molding packaging bottle/box, injection and electronic waste recycling. It is including sorting, size reduction, metal removing, cold and hot washing, high efficiency friction washing and drying modular. Which can remove most of contaminants such as ferrous and nonferrous metals, sand, oil, glue, paper label and many other different contaminants efficiently. Moreover, turn key solution can be provided with all water treatment, processing of sludge, paper stick, labels and etc.

Machine include:

	Description	units
1	Baler breaker	1
2	L Belt conveyor	1
3	Pre-washer	1
4	Sorting table with magnetic roller	1
5	Belt conveyor	2
6	1200 Crusher	2
7	Screw feeder	2
8	High speed friction washer	1
9	Floating washer	1
10	Screw discharger	2
11 12	Steam washer	2
13 14	Screw discharger	2
15	High speed friction washer	1
16 17	Floating washer	2
18 19	Screw discharger	2
20	Horizontal dewatering machine	1
21	Label separator	1
22	Air conveying hopper+ Pneumatic lifting system	1
23	Electric cabinet	1

Machine working Flow:

Belt conveyor * 2 → Crusher * 2 → Screw friction washer* 2 → Floating washer →Screw friction washer →Floating washer →Screw conveyor → High speed friction machine → Screw conveyor → Two direction horizontal separating screw → Squeezer machine* 2 →Storage hopper → Control cabinet

Machine Parameters:

1.PE PP film/woven bag washing and recycling line.

Capacity(kg/h)	Total Power(kw)	Area Required(㎡）	Labour Required	Water Consumption(m³/h)
300	210	240	3-4	1.5
500	340	360	4-5	3
1000	550	450	5-6	4.5
1500	800	520	5-6	6

2.PE PP hard material washing and recycling line.

Capacity(kg/h)	Total Power(kw)	Area Required(㎡）	Labour Required	Water Consumption(m³/h)
500	300	340	4-5	3
1000	500	420	4-5	4.5
2000	650	550	5-6	6
3000	800	700	5-6	7

3.PET bottle washing and recycling line.

Capacity(kg/h)	Total Power(kw)	Area Required(㎡）	Labour Required	Water Consumption(m³/h)
500	200	350	6-8	1
1000	450	650	8-10	2
2000	700	1000	10-12	4
3000	900	1500	12-14	6
5000	1200	2400	14-16	10
